Hobs - H-Connect 604 Slider Bridge


H-Connect 604 Slider Bridge


H-Connect 604 Slider Bridge

Connectivity
The new hobs with H-Connect controls allow all the functions of the compatible Frecan hood to be controlled from a control located on the hob.

Compatibility
Ensure the perfect blend for your wireless door panel with one of Frecan's compatible hoods by choosing between different options and smart models for ceiling, integration, wall and island.
Can you imagine being able to control the hood from the plate itself? Cooking has definitely never been so easy.

Slide control
Quick temperature selection with the slider: just touch the desired power level with a finger on the hob's touch screen.

Maximum flexibility

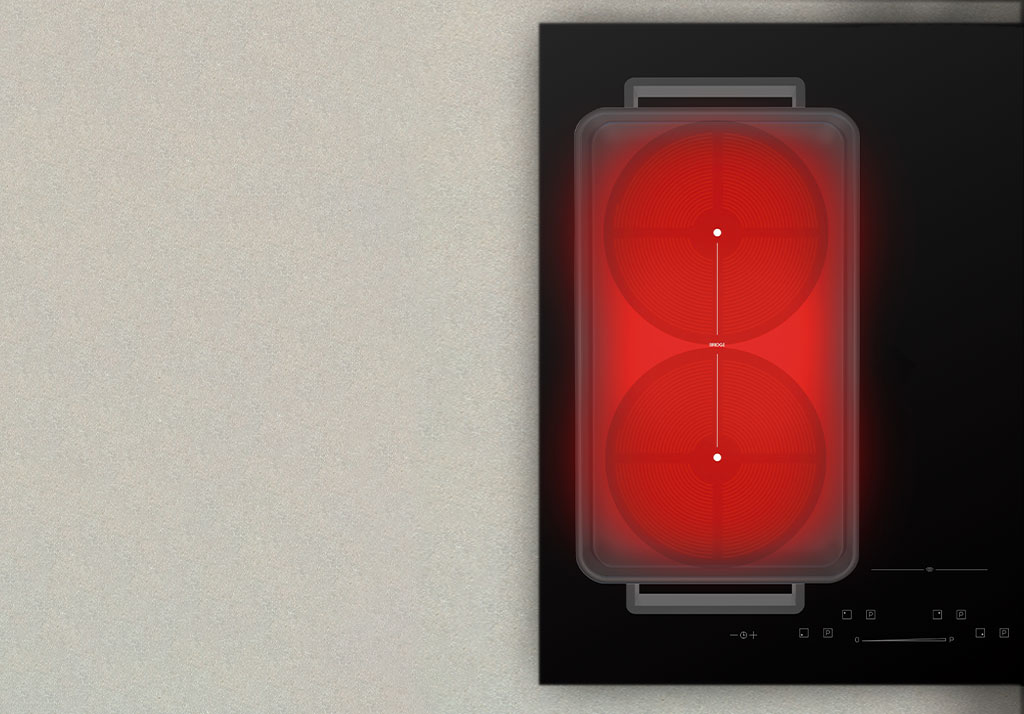

The H-Connect 604 Slider Bridge model allows you to link both two cooking zones to create a single zone where you can use large pots or cook several dishes at the same time.





Highlights

• <strong>H-Connect Controls (Hood control)</strong>• Touch control with Slider.• Power Boost function.• Function • Function Timer.• Heat maintenance.• Heating function• Automatic detection of the container.• Security lock.

Technical information

  • HOB 4 INDUCTION ZONES

  • H-Connect Controls (Hood control)

  • • Touch control with Slider.

  • • 9 power levels in each zone.

  • • Bridge function.

  • • Power Boost function.

  • • Function "Stop & Go".

  • • Function Timer.

  • • Heat maintenance.

  • • Heating function

  • • Automatic detection of the container.

  • • Residual heat indicator for each zone.

  • • Security lock.


  • Cooking zones


    • Rear Left Ø180 mm. 1500 W. - Power Boost 2000 W.
    • Front Left Ø180 mm. 1500 W. - Power Boost 2000 W.
    • Rear Right Ø210 mm. 1500 W. - Power Boost 2000 W.
    • Front Right Ø145 mm. 1200 W. - Power Boost 1600 W.
    • Maximum total power 7200 W.

Models

  • 590-BK-Slider Bridge

Downloads

Technical design


Hobs - H-Connect 604 Slider Bridge - Technical design
590
Built-in dimensions: 560 x 490 mm
